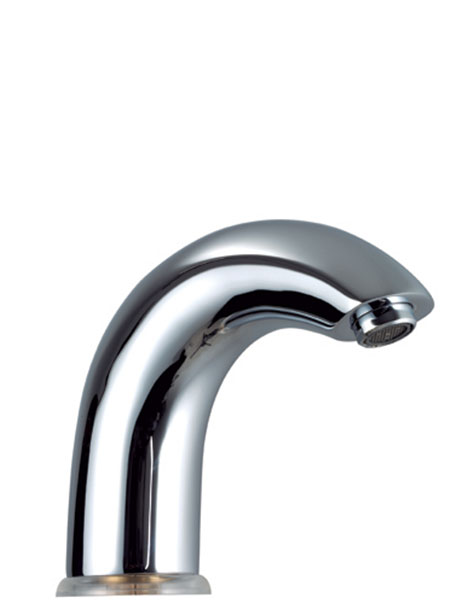

Sensor tap with surround inductive activation
Introducing Autotaps SST Series, with its 360⁰ Surround Inductive Sensor Technology. This latest innovation uses 360⁰ inductive sensor, which activates the tap as soon as hands come within a few inches above, below, or along the sides of the spout. The entire body of the tap is inductively active, and users are capable of activating the tap from any angles.

Autotaps SST uses inductive sensors instead of an infrared beam to detect the presence of hands or objects. It is powered by standard alkaline batteries that are easily installed beneath the sink along with its sensor control box. The battery-power is capable of lasting up to 100,000 cycles/activations.

The inductive sensor eliminates the frustration of searching for the 'infrared range' to get the valve activated. It provides greater user satisfaction, and suitable for restrooms, public or commercial applications.

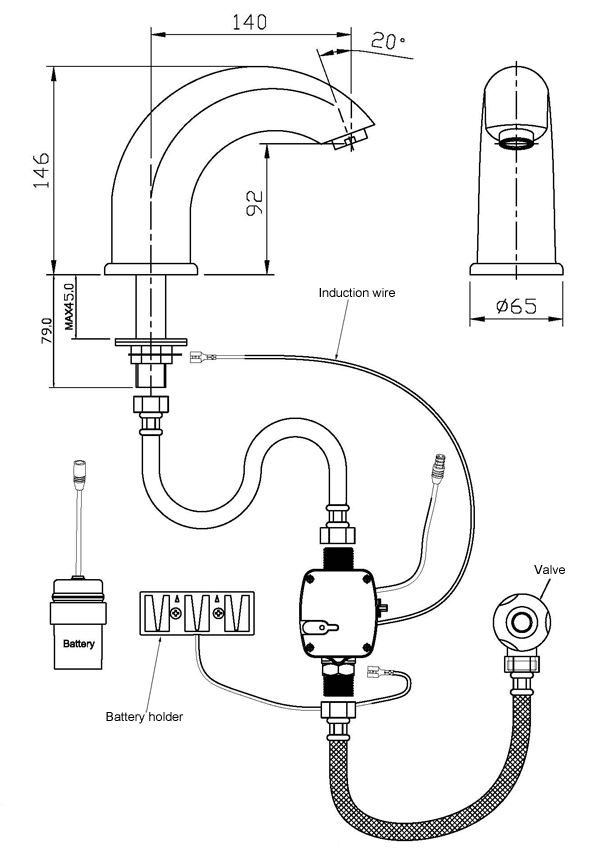

Technical Information:
Control box: Diameter of 'inlet' pipe: G1/2”
Control box: Diameter of 'outlet' pipe: G1/2”
Water Consumption: 0.05Mpa – 0.6Mpa
Power: Battery only (DC6V: 4x AA Alkaline Batteries)
Battery Lifespan: 100,000 Cycles
Static Power Consumption: 0.36mW
Working Power Consumption: 0.5mW
Proximity Range: 0-50mm around the tap
Motor Valve Lifespan: 500,000 Cycles
Induction Response Time: <1 Second
Induction Closing Time: <2 Seconds
Flux: ≥0.07 L/S
Temperature: 0.1-50⁰ /C
Diameter Hole for Worktop: Ø33-35mm
Pipe Threading: British Standard Whitworth (BSW)
Finish: Chrome-plated

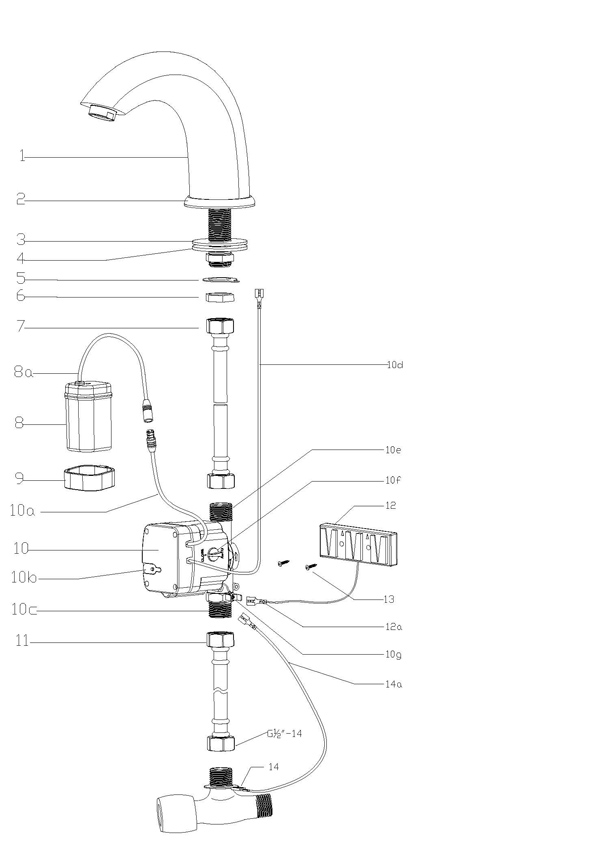

1x Sensor Tap
1x Control Box
1x Flexible G1/2" *600mm Rubber Connection Hose
Fittings and Screws

IRC-613 REMOTE CONTROL

	FLUSH/RUN Water: Flow Time Increase When this button is pressed once, it will increase water flush/flow time by ‘5 seconds’. Each key press represents 5 seconds ‘flow time’ increment. HOW TO:  With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 3 LED light flashes. Each key press increases water flow time by 5s. For example, press 1 time =5s, press 2 times= 10s, 3 times= 15s etc. NOTE:  Each key press must be registered by sensor module first before setting another parameter. For example, if you want the tap to run for 10 seconds, press this key once and let it register (which equals 5s) and press it again the second time to increase it from 5s to 10s and so on. FLUSH/RUN Water: Flow Time Decrease When this button is pressed once, it will decrease water flush/flow time by ‘5 seconds’. Each key press represents 5 seconds ‘flow time’ decrement. HOW TO:  With remote control facing/pointing towards the sensor, press once, LED light flashes 3 times. Each key press will decreases water flow time by 5s. For example, press 1 time =-5s, press 2 times= -10s, 3 times= -15s etc. NOTE:  Each key press must be registered by sensor module first before setting another parameter. For example, if you want the flow time to be decreased by 10 seconds, press this key once and let it register (which equals -5s) and press it again the second time to decrease it from 10s to 5s and so on. Increase Sensor Distance This button will increase the sensor distance by/between 2-5cm. HOW TO:  With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 3 LED light flashes. Each key press increases sensor proximity zone, and represents 2-5cm increment. *Sensor distance range scope is around/between 7cm-35cm Decrease Sensor Distance This button will decrease the sensor proximity distance by/between 2-5cm. HOW TO:  With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 2 LED light flashes. Each key press increases sensor proximity zone, and represents 2-5cm increment. *Sensor distance range scope is around/between 7cm-35cm Auto Search This button allows the 'automatic' settings of the sensor proximity sensor range.  HOW TO:  With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 5 LED light flashes. During these flashes, the sensor will auto-calibrate itself and adjust its infrared distance settings in accordance with environment.  This button can also be used to set the sensor distance manually.   For example, once this button is pressed, place hand/object at desired position/distance where you want sensor range to end and it will automatically calculate the distance from sensor module to hand/object. Standby This button will put the sensor on standby or 'inactive' mode. This is particularly useful if the tap needs cleaning or simply trying to put the sensor tap 'out of action' during holiday period. When this mode is active, the sensor will not respond to any interaction with it until it's switched ON again.  HOW TO:  With remote control facing/pointing towards the sensor, press once, LED light comes on and stays on for 2-3 seconds and then goes off, standby mode is now active. To disable, press once, LED light comes on and stays on for 2-3 seconds ‘twice’ and then goes off. Standby mode is now disabled.
